LDAP Connection

[Ogunleye, Philip]

Hi All,



Think I'm down to my final issue with the setup.  I have installed the
apache directory service as I have had no luck connecting to Active
Directory.  That being said my login.config has been attached but does
not appear to correct as it is still failing as shown below.  I'm
confused as to why it is not connecting and would appreciate any help.



18:34:07.234 - DEBUG
[edu.internet2.middleware.shibboleth.idp.authn.provider.UsernamePassword
LoginServlet:170] - Attempting to authenticate user HK3585

18:34:07.265 - DEBUG [edu.vt.middleware.ldap.jaas.LdapLoginModule:180] -
useFirstPass = false

18:34:07.265 - DEBUG [edu.vt.middleware.ldap.jaas.LdapLoginModule:181] -
tryFirstPass = false

18:34:07.265 - DEBUG [edu.vt.middleware.ldap.jaas.LdapLoginModule:182] -
storePass = false

18:34:07.265 - DEBUG [edu.vt.middleware.ldap.jaas.LdapLoginModule:183] -
clearPass = false

18:34:07.265 - DEBUG [edu.vt.middleware.ldap.jaas.LdapLoginModule:184] -
setLdapPrincipal = true

18:34:07.265 - DEBUG [edu.vt.middleware.ldap.jaas.LdapLoginModule:185] -
setLdapDnPrincipal = false

18:34:07.265 - DEBUG [edu.vt.middleware.ldap.jaas.LdapLoginModule:186] -
setLdapCredential = true

18:34:07.265 - DEBUG [edu.vt.middleware.ldap.jaas.LdapLoginModule:187] -
defaultRole = []

18:34:07.265 - DEBUG [edu.vt.middleware.ldap.jaas.LdapLoginModule:188] -
principalGroupName = null

18:34:07.265 - DEBUG [edu.vt.middleware.ldap.jaas.LdapLoginModule:189] -
roleGroupName = null

18:34:07.265 - DEBUG [edu.vt.middleware.ldap.jaas.LdapLoginModule:77] -
userRoleAttribute = []

18:34:07.296 - DEBUG [edu.vt.middleware.ldap.jaas.LdapLoginModule:83] -
Created authenticator:
edu.vt.middleware.ldap.auth.AuthenticatorConfig at 27786030::env={java.nami
ng.provider.url=ldap://read-auto-01-rv.snaponglobal.com:10489,
java.naming.factory.initial=com.sun.jndi.ldap.LdapCtxFactory}

18:34:07.296 - DEBUG [edu.vt.middleware.ldap.auth.SearchDnResolver:102]
- Looking up DN using userFilter

18:34:07.296 - DEBUG [edu.vt.middleware.ldap.auth.SearchDnResolver:193]
- Search with the following parameters:

18:34:07.296 - DEBUG [edu.vt.middleware.ldap.auth.SearchDnResolver:194]
-   dn = o=mojo

18:34:07.296 - DEBUG [edu.vt.middleware.ldap.auth.SearchDnResolver:195]
-   filter = uid={0}

18:34:07.296 - DEBUG [edu.vt.middleware.ldap.auth.SearchDnResolver:196]
-   filterArgs = [HK3585]

18:34:07.296 - DEBUG [edu.vt.middleware.ldap.auth.SearchDnResolver:197]
-   searchControls = javax.naming.directory.SearchControls at 6bedc9

18:34:07.296 - DEBUG [edu.vt.middleware.ldap.auth.SearchDnResolver:198]
-   handler =
[edu.vt.middleware.ldap.handler.FqdnSearchResultHandler at 1c83de7]

18:34:07.296 - DEBUG
[edu.vt.middleware.ldap.handler.DefaultConnectionHandler:74] - Bind with
the following parameters:

18:34:07.296 - DEBUG
[edu.vt.middleware.ldap.handler.DefaultConnectionHandler:75] -
authtype = simple

18:34:07.296 - DEBUG
[edu.vt.middleware.ldap.handler.DefaultConnectionHandler:76] -   dn =
uid=admin

18:34:07.296 - DEBUG
[edu.vt.middleware.ldap.handler.DefaultConnectionHandler:83] -
credential = <suppressed>

18:34:07.312 - DEBUG
[edu.vt.middleware.ldap.handler.DefaultConnectionHandler:163] - Error
connecting to LDAP URL: ldap://read-auto-01-rv.snaponglobal.com:10489

javax.naming.AuthenticationException: [LDAP: error code 49 - cannot bind
the principalDn.]

                at com.sun.jndi.ldap.LdapCtx.mapErrorCode(Unknown
Source) ~[na:1.7.0_09]

                at com.sun.jndi.ldap.LdapCtx.processReturnCode(Unknown
Source) ~[na:1.7.0_09]

                at com.sun.jndi.ldap.LdapCtx.processReturnCode(Unknown
Source) ~[na:1.7.0_09]

                at com.sun.jndi.ldap.LdapCtx.connect(Unknown Source)
~[na:1.7.0_09]

                at com.sun.jndi.ldap.LdapCtx.<init>(Unknown Source)
~[na:1.7.0_09]

                at com.sun.jndi.ldap.LdapCtxFactory.getUsingURL(Unknown
Source) ~[na:1.7.0_09]

                at com.sun.jndi.ldap.LdapCtxFactory.getUsingURLs(Unknown
Source) ~[na:1.7.0_09]

                at
com.sun.jndi.ldap.LdapCtxFactory.getLdapCtxInstance(Unknown Source)
~[na:1.7.0_09]

                at
com.sun.jndi.ldap.LdapCtxFactory.getInitialContext(Unknown Source)
~[na:1.7.0_09]

                at
javax.naming.spi.NamingManager.getInitialContext(Unknown Source)
~[na:1.7.0_09]

                at javax.naming.InitialContext.getDefaultInitCtx(Unknown
Source) ~[na:1.7.0_09]

                at javax.naming.InitialContext.init(Unknown Source)
~[na:1.7.0_09]

                at javax.naming.ldap.InitialLdapContext.<init>(Unknown
Source) ~[na:1.7.0_09]

                at
edu.vt.middleware.ldap.handler.DefaultConnectionHandler.connectInternal(
DefaultConnectionHandler.java:134) ~[vt-ldap-3.3.6.jar:na]

                at
edu.vt.middleware.ldap.handler.AbstractConnectionHandler.connect(Abstrac
tConnectionHandler.java:156) ~[vt-ldap-3.3.6.jar:na]

                at
edu.vt.middleware.ldap.AbstractLdap.connect(AbstractLdap.java:1006)
[vt-ldap-3.3.6.jar:na]

                at
edu.vt.middleware.ldap.AbstractLdap.getContext(AbstractLdap.java:1058)
[vt-ldap-3.3.6.jar:na]

                at
edu.vt.middleware.ldap.AbstractLdap.search(AbstractLdap.java:214)
[vt-ldap-3.3.6.jar:na]

                at
edu.vt.middleware.ldap.auth.SearchDnResolver.resolve(SearchDnResolver.ja
va:139) [vt-ldap-3.3.6.jar:na]

                at
edu.vt.middleware.ldap.auth.Authenticator.getDn(Authenticator.java:106)
[vt-ldap-3.3.6.jar:na]

                at
edu.vt.middleware.ldap.jaas.JaasAuthenticator.authenticate(JaasAuthentic
ator.java:74) [vt-ldap-3.3.6.jar:na]

                at
edu.vt.middleware.ldap.auth.Authenticator.authenticate(Authenticator.jav
a:320) [vt-ldap-3.3.6.jar:na]

                at
edu.vt.middleware.ldap.auth.Authenticator.authenticate(Authenticator.jav
a:277) [vt-ldap-3.3.6.jar:na]

                at
edu.vt.middleware.ldap.jaas.JaasAuthenticator.authenticate(JaasAuthentic
ator.java:60) [vt-ldap-3.3.6.jar:na]

                at
edu.vt.middleware.ldap.jaas.LdapLoginModule.login(LdapLoginModule.java:1
03) [vt-ldap-3.3.6.jar:na]

                at sun.reflect.NativeMethodAccessorImpl.invoke0(Native
Method) ~[na:1.7.0_09]

                at sun.reflect.NativeMethodAccessorImpl.invoke(Unknown
Source) ~[na:1.7.0_09]

                at
sun.reflect.DelegatingMethodAccessorImpl.invoke(Unknown Source)
~[na:1.7.0_09]

                at java.lang.reflect.Method.invoke(Unknown Source)
~[na:1.7.0_09]

                at javax.security.auth.login.LoginContext.invoke(Unknown
Source) [na:1.7.0_09]

                at
javax.security.auth.login.LoginContext.access$000(Unknown Source)
[na:1.7.0_09]

                at javax.security.auth.login.LoginContext$4.run(Unknown
Source) [na:1.7.0_09]

                at javax.security.auth.login.LoginContext$4.run(Unknown
Source) [na:1.7.0_09]

                at java.security.AccessController.doPrivileged(Native
Method) [na:1.7.0_09]

                at
javax.security.auth.login.LoginContext.invokePriv(Unknown Source)
[na:1.7.0_09]

                at javax.security.auth.login.LoginContext.login(Unknown
Source) [na:1.7.0_09]





-------------- next part --------------
An HTML attachment was scrubbed...
URL: http://shibboleth.net/pipermail/users/attachments/20130114/20c0d4f8/attachment-0001.html

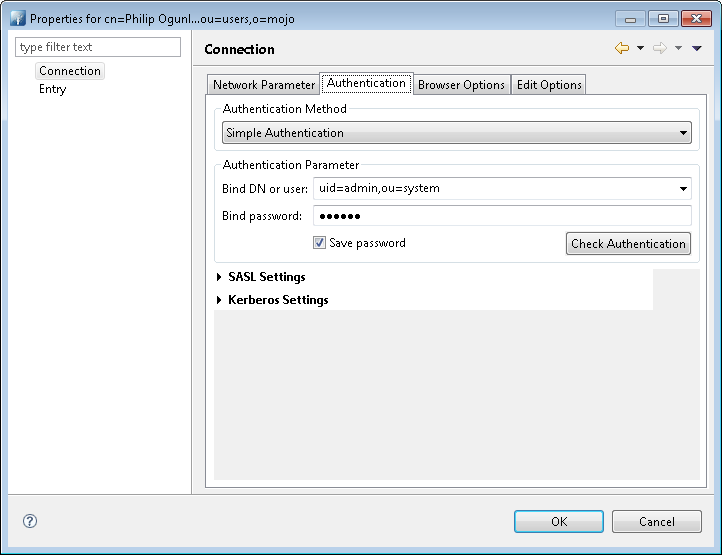

-------------- next part --------------
A non-text attachment was scrubbed...
Name: not available
Type: image/png
Size: 22888 bytes
Desc: image001.png
Url : http://shibboleth.net/pipermail/users/attachments/20130114/20c0d4f8/attachment-0001.png
-------------- next part --------------
A non-text attachment was scrubbed...
Name: login.config
Type: application/octet-stream
Size: 1957 bytes
Desc: login.config
Url : http://shibboleth.net/pipermail/users/attachments/20130114/20c0d4f8/attachment-0001.obj
